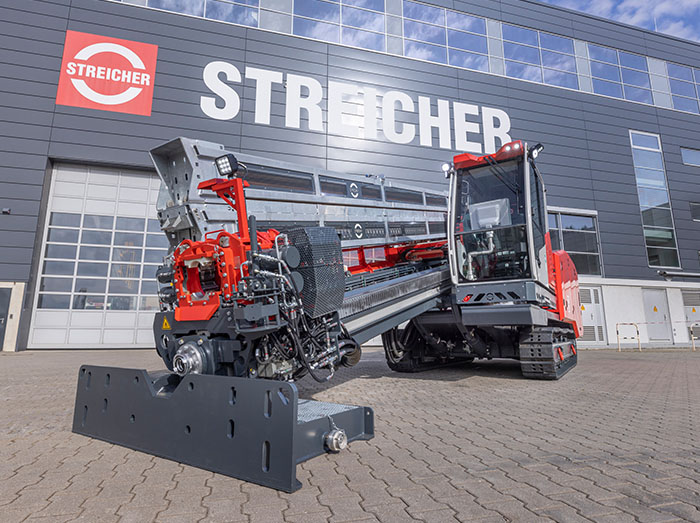

HDD-E Series

Proven Technology with Alternative Drive

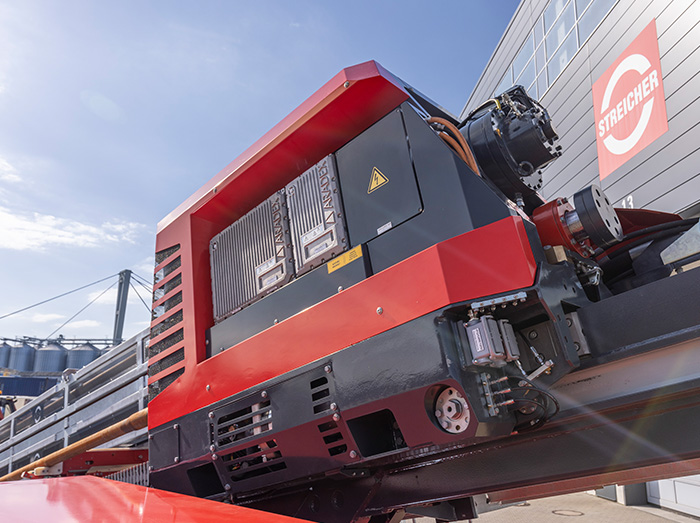

Renewable energies are becoming more and more important. This saves CO2 emissions and protects the environment. Following technology trends the entire drive system of the HDD-E rigs was designed to be fully electric…



  • The fully electric drive system is able to temporarily store excess energy, which can be accessed flexibly when required. This optimises energy consumption.
  • Emission protection was a key driver when planning the rigs. By means of the electrical drive technology, the rigs are very quiet, which, in addition to a high level of acceptance in residential and natural conservation areas, also has advantages for occupational safety and for the employees.
  • The aim of reducing noise and CO2 emissions through fully electric technology is a key selling point in tenders.

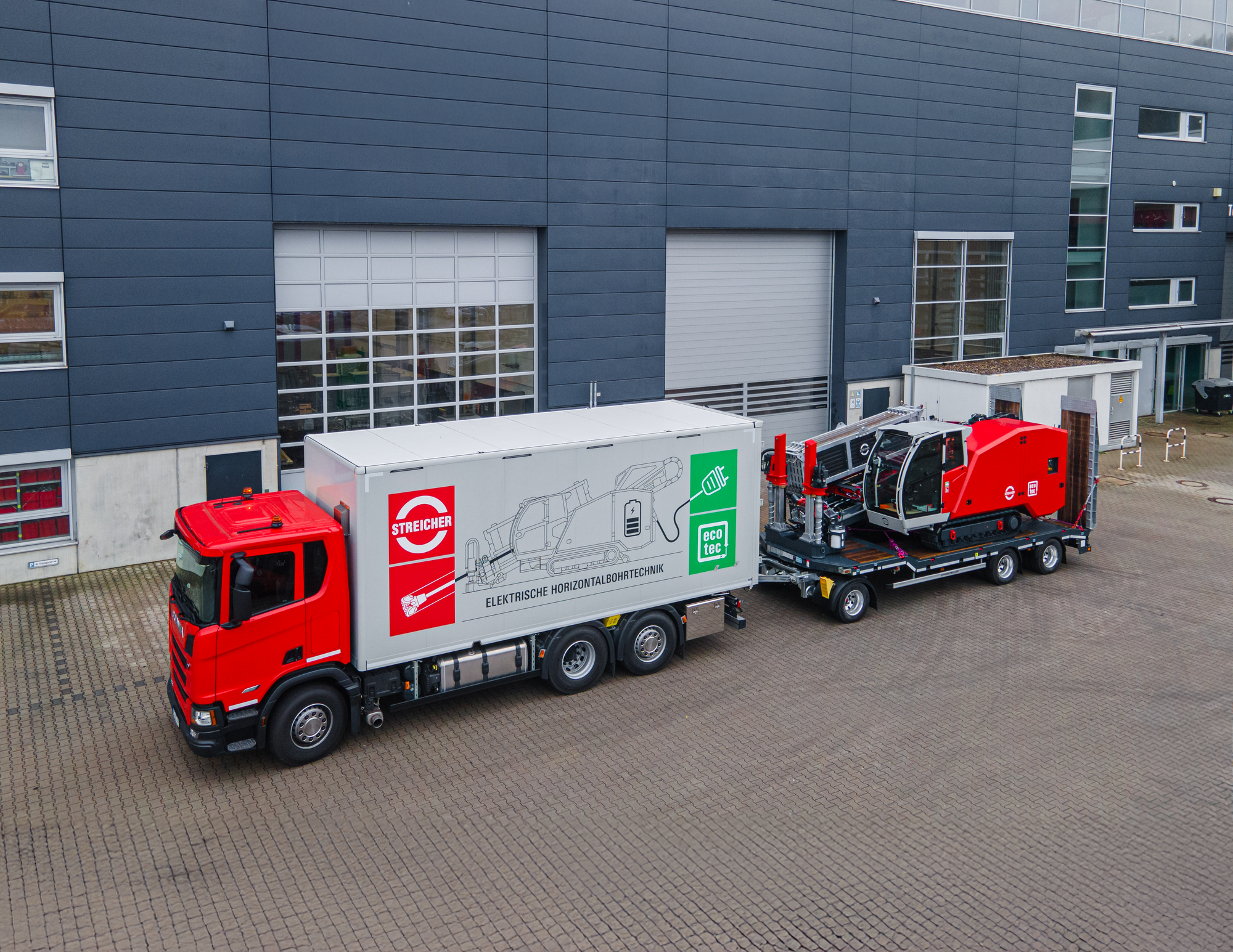

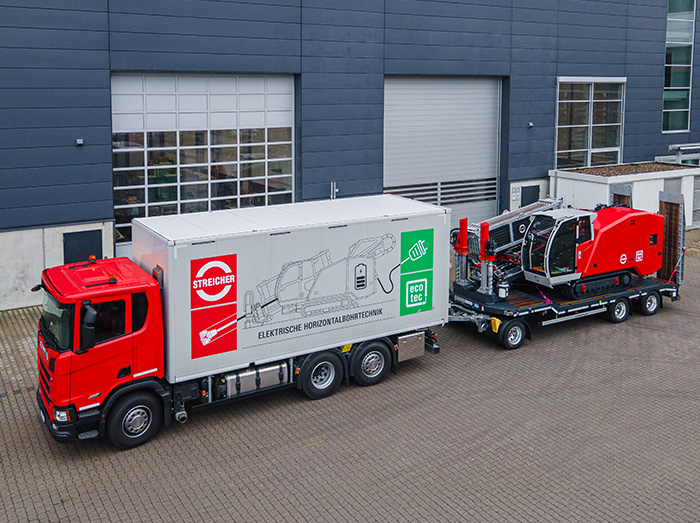

  • The HDD-E rigs offer the option of being supplied via the public power grid. In addition, the drilling rigs can be moved without external energy sources.
  • The electric drive helps to reduce operating and maintenance costs.
  • The operation of the HDD-E rigs is made considerably easier by an intuitive operating concept. The large touch panel gives the operator a good overview of the drilling process and the most important drilling parameters.

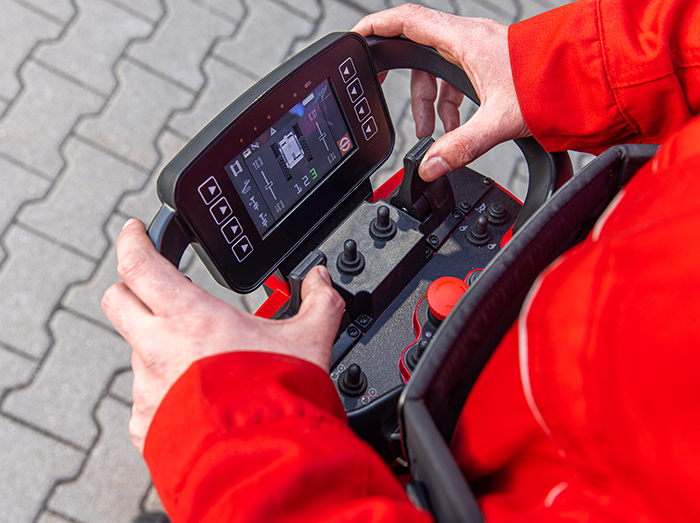

  • In terms of safety, the rigs are convincing by their integrated anti-collision system, among other items. The rigs can be relocated and installed using the remote control. For the operator, this means an optimal field of vision and therefore a reduction in risks of accidents. This offers considerable advantages even in confined spaces.

  • Moreover, the HDD-E rigs include a boost function. During operation higher thrust and pullback forces can be temporarily retrieved. This guarantees a higher flexibility as well as a wider range of applications.

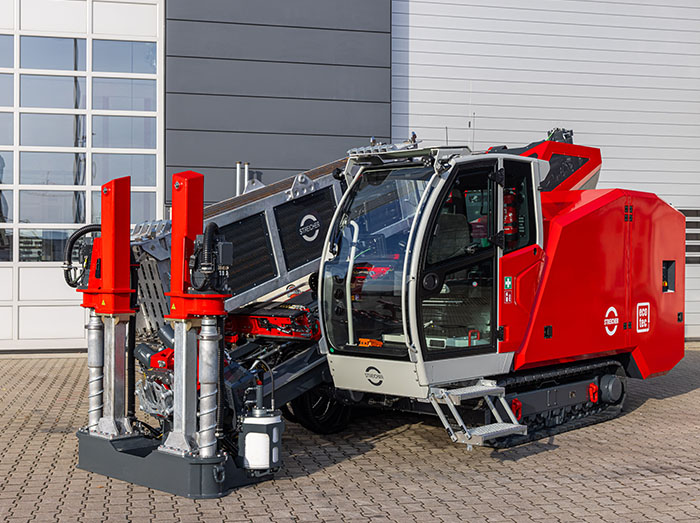

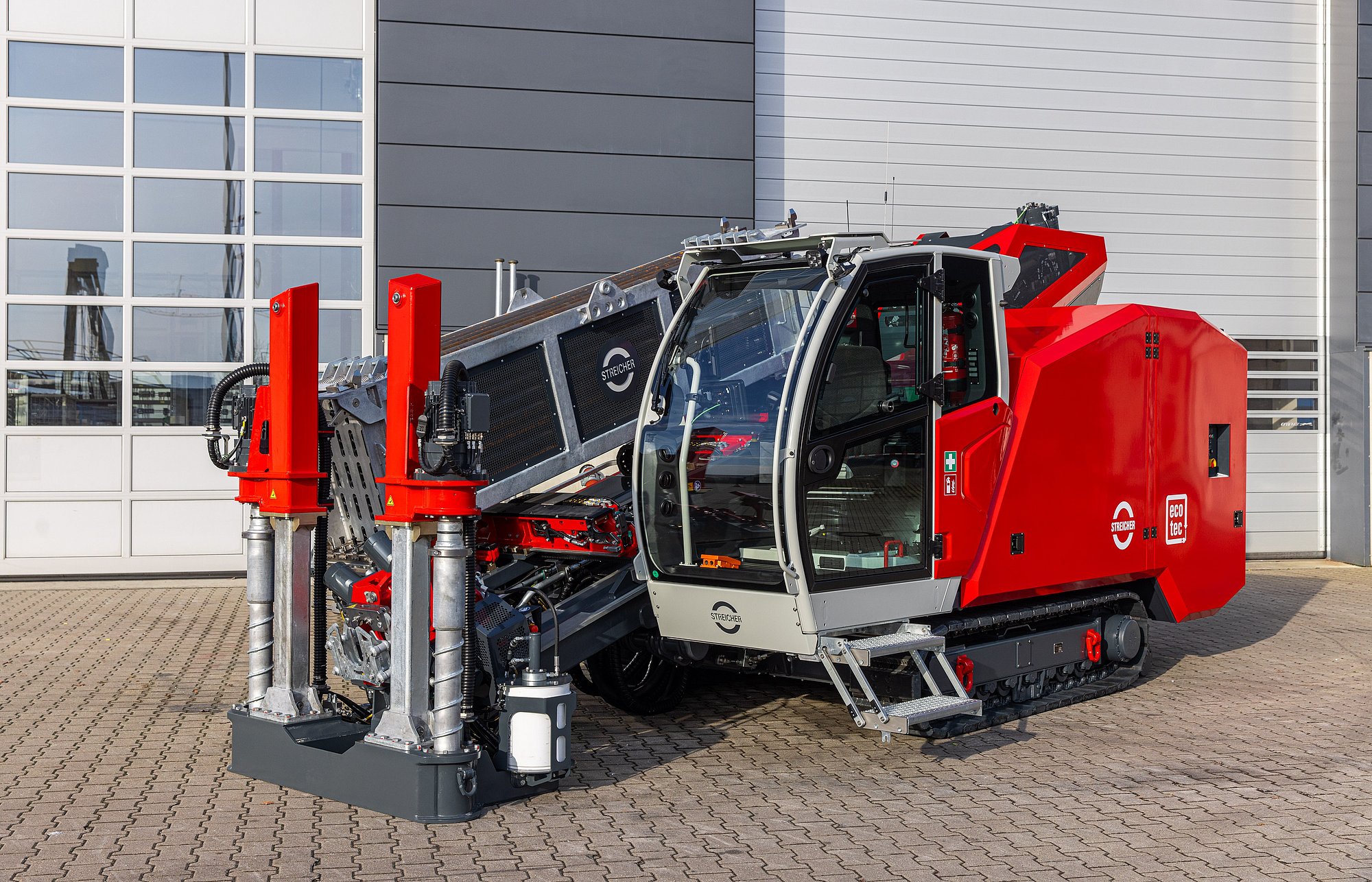

STREICHER HDD20-E

  • Pullback load: 200 kN (20 t); 250 kN (25 t) (boost)
  • Thrust load: 200 kN (20 t)
  • Power rating: 150 kVA (140 kW)
  • Transport weight: 18.3 t
  • Dimensions (LxWxH): 7.6 x 2.55 x 2.8 m
  • Ambient temperature: -20 to +40°C

  • Video HDD-E Series



HDD20-E
HDD45-E

STREICHER HDD45-E

  • Pullback load: 450 kN (45 t); 600 kN (60 t) (boost)
  • Thrust load: 450 kN (45 t)
  • Power rating: 250 kVA (235 kW)
  • Transport weight: 28.5 t
  • Dimensions (LxWxH): 11.2 x 2.55 x 3.0 m
  • Ambient temperature: -20 to +40°C

  • Video HDD-E Series

STREICHER HDD80-E

  • Thrust / Pullback load: 800 kN (80 t); 1,000 kN (100 t) (boost)
  • Power rating: 400 kVA
  • Transport weight: 40 t
  • Dimensions (LxWxH): 15.6 x 3.0 x 3.2 m
  • Ambient temperature: -20 to +40°C

  • Video HDD-E Series
HDD80-E
[Translate to Englisch:] HDD80-E
